Overview

When numerous multiple choice options (e.g. selecting several colours among dozens) are available to the end user, a Token control is an easy way to present these choices in a clear way.

• directly by the end user,
• programmatically.

Behavior of the text token Edit control at runtime

• A token is automatically added into the control when the user presses the Enter key or uses one of the specified separator characters.
• If the input area has focus:
  • Clicking on a token removes the input cursor.
  • You can use the arrows to select tokens and remove the input cursor.
• If a token is selected:
  • you can use the keyboard arrows and the Home and End keys to select and move among the tokens.
  • the Del key deletes the selected token.
  • the Backspace key deletes the previous token.
• Using the "X" allows you to delete the desired token.
• If the user has not set the focus on the input area yet:
  • The Tab key sets the focus on the input area if the Edit control is active.
  • The Tab key sets the focus on the first token if the Edit control is not active.
• If the focus is set on another control, the selected input area and/or token lose focus.

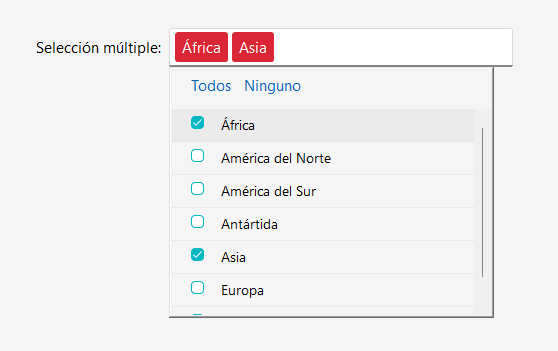

• If multiple selection is enabled, the user can select multiple tokens by holding down the Ctrl key.

Automatic Application Features (AAF)
Several AAFs are available in the token context menu:

• Modify: Allows you to edit the text of a token in order to modify it.
• Cut: Copies the token text and deletes the token.
  If multiple selection is enabled, this option cuts all selected tokens.
• Copy: copies the text of a token.
  If multiple selection is enabled, this option copies all selected tokens.
• Copy all: copies the text of all tokens.
• Paste: Paste the previously copied token(s) or text from the clipboard.

Creating a Text token Edit control

1. On the "Creación" tab, in the "Controles frecuentes" group, click .
2. Click where you want to create the control in the window or page. The control appears in the editor.
3. In the Edit control description window, select "Text tokens" and validate.

Note It is also possible to create a text Token edit control from a list of predefined fields supplied as standard, by selecting "Edit control" (under the icon). The list of available controls is displayed with the project skin template. Simply select "Token edit" or "Token eMail edit".

Options specific to Text token Edit controls

• the management options of the control and the tokens ( "General" tab).
• the token drag-and-drop options ("Details" tab).
• the style of the tokens ( "Style" tab).

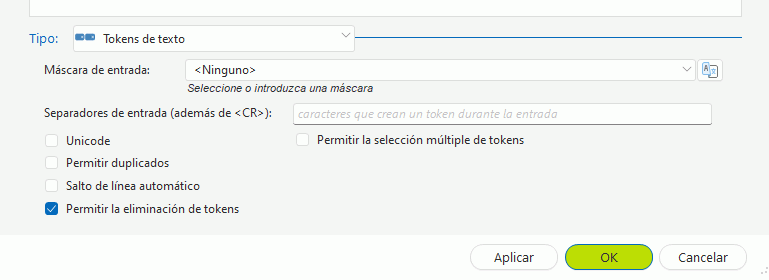

The "General" tab of the control description window includes the following options:

• Máscara de entrada When tokens can be entered directly, an input mask can be selected, as for any edit control. The end-user is thus guided: email, capital letters, numerical values, zip code, etc.
• Input separators (in addition to <RC>): List of characters considered as a token separator. When the user enters one of these characters, a token will be created with the content of the input area and the user will proceed to enter the next token. This list can be manipulated in the code via the TokenListSeparator property.
• Unicode Allows unicode characters to be entered.
• Permitir duplicados Allows duplicate entries in tokens. If this option is selected, the user will be able to tokenize the same text several times. This option can be set programmatically using the TokenAllowDuplicate property.
• Return to line automation Automatic line feed: Allows you to manage the operation in the event of a large number of tokens being entered: it is possible to display the tokens on several lines (option checked) or to display a horizontal scrollbar to view all the tokens.
• Deletable tokens Allows user to delete tokens from Edit control field. In that case, an X will appear in the token. This option can be set programmatically using the TokenDeletable property.
• Permitir la selección múltiple de tokens Multi-selection of tokens (using the Ctrl key, for example). This option can be set programmatically using the Multiselection property.

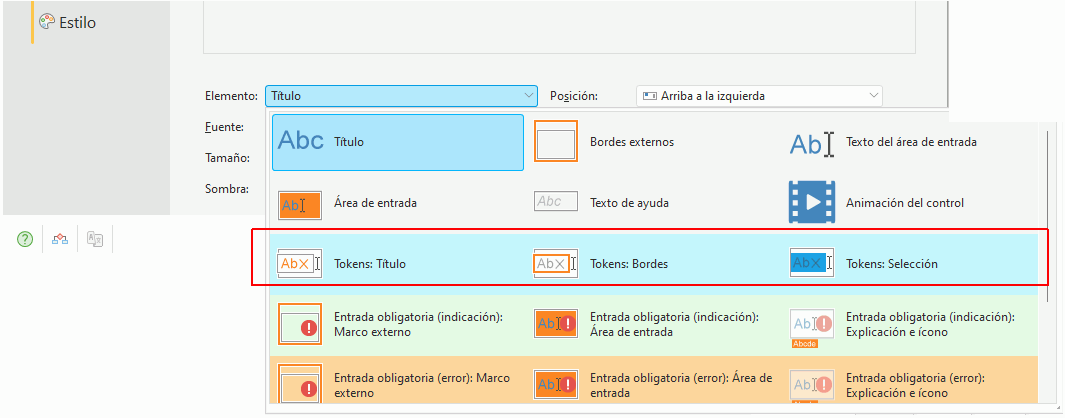

The "Style" tab in the control description window allows you to define:

• token label style ("Tokens: Label" element).
• token style ("Tokens: Frame" item). In this case, it is possible to select:
  • the X icon for the token. The image used must have the following dimensions: 12 pixels x 12 pixels (in each state).
  • the background and border color of the token.
  • the type of token borders.
• the style of the selected token ("Tokens: Selection" item). You can then choose the color of the selected token. The "Automatic" color automatically sets the color of the selected token depending on the color of the text. Thus, the text of the token is always readable.

Associated events

• Add a token.
• Delete a token.
• Click a token.

Associated WLanguage functions and properties

• the Token variable type, which is used to get and set all the characteristics of a token.
• token functions:
  • standard syntax:


    EditAddToken	Agrega un token a un control Campo de entrada.
    EditDeleteAllToken	Elimina todos los tokens de un control Campo de entrada de tipo "Tokens de texto".
    EditDeleteToken	Elimina un token de un control Campo de entrada de tipo "Tokens de texto".
    EditInsertToken	Inserta un token en un control Campo de entrada de tipo "Tokens de texto".
    EditTokenCount	Devuelve el número de tokens presentes en un control Campo de entrada.
  • prefix syntax:


    <Edit>.AddToken	Agrega un token a un control Campo de entrada.
    <Edit>.DeleteAllToken	Elimina todos los tokens de un control Campo de entrada de tipo "Tokens de texto".
    <Edit>.DeleteToken	Elimina un token de un control Campo de entrada de tipo "Tokens de texto".
    <Edit>.InsertToken	Inserta un token en un control Campo de entrada de tipo "Tokens de texto".
    <Edit>.TokenCount	Devuelve el número de tokens presentes en un control Campo de entrada.
• properties for managing tokens and their characteristics:


  DndSource	The DndSource property is used to determine and change a control's drag-and-drop behavior.
  DndTarget	The DndTarget property determines and changes how a control behaves in a drag-and-drop operation.
  StoredValue	The StoredValue property is used to get the value currently stored by: a row in a List Box, ListView or Combo Box control. a "Text token" Edit control. a row of a Table control. an input suggestion in an Edit control (if the suggestion is selected).
  Token	La propiedad Token permite manipular los diferentes tokens asociados a un control Campo de entrada de tipo "Tokens de texto".
  TokenAllowDuplicate	The property TokenAuthorizeDoubloon property allows you to: Allow or prevent the user from entering duplicates in a "Text token" Edit control. Determine if duplicates are allowed in a "Text token" Edit control.
  TokenCurrentInput	La propiedad TokenCurrentInput permite leer o cambiar el valor que se está introduciendo en un control Campo de entrada de tipo "Tokens de texto".
  TokenDeletable	La propiedad TokenDeletable permite: Determinar si se permite al usuario final borrar tokens en un control Campo de entrada con tokens de Text. Permitir o impedir que el usuario final borre tokens en un control Campo de entrada con tokens de texto.
  TokenEnabled	La propiedad TokenEnabled determina si un control Campo de entrada es de tipo "Tokens de texto".
  TokenListSeparator	The TokenListSeparator property retrieves or modifies the separators that trigger the creation of new tokens when entering information in a "Text token" Edit control.

Adding tokens to a list of input suggestions
