• information about the entire Looper control (select the name of the Looper control).
• information about each attribute of the looper (select the name of the looper attribute). In this case, only the "Binding" tab is available.

• Standard looper.
• AJAX looper.
  Note: This type of RepeatString zone means that the page is not completely refreshed for each server action. It is also used to get an interface closer to the one of a Windows application, by proposing scrollbars instead pagers.
• Browser looper.
  Note: This type of RepeatString zone can be fully manipulated by programming in Browser code. It can operate in stand-alone mode, without accessing the server. This type of looper is recommended in off-line mode or in WebApp sites. It can also be used in static sites.

• Grid view: This view displays the various fields of the RepeatString as a grid.
• Online gallery: This presentation mode allows you to create an online image gallery.
• Column gallery: This presentation mode allows you to create a column gallery of images.

• the operating mode ("General" tab).
• the initial state of the control and the selection mode ("UI" tab).
• the display mode and its settings ("Details" tab).
• the population mode and the breaks ("Content" tab).
• the style of the different looper elements ("Style" tab).

Operating mode

The different operating modes are:

• Standard looper.
  In standard mode, the entire page is refreshed each time an action is performed on the server.
  This operating mode includes an optional pager (to move between the different pages of data displayed by the control).
  This mode of operation is compatible with any display mode: grid view, online gallery or column gallery.
• AJAX looper.
  This type of looper is used to avoid refreshing the page at each server action. It is also used to get an interface closer to the one of a Windows application, by proposing scrollbars instead pagers.
  This operating mode is compatible with a grid view.
• Browser looper.
  This type of looper can be manipulated programmatically in browser code. It can operate in stand-alone mode, without accessing the server.
  This type of looper is recommended in off-line mode or in WebApp sites. It can also be used in static sites.
  This operating mode is compatible with a grid view.

Maximum number of rows per page

• for a standard Looper control, an associated Pager control can be used to view additional rows.
• for an AJAX Looper control, a scrollbar appears and allows users to view the additional rows.

• for a standard Looper control in a page that doesn't use zoning mode, space is kept for the rows.
• for a standard Looper control in a page that uses zoning mode and with anchors set to fit to the content, space is not kept for the rows. The controls below the Looper control automatically snap to it.
• for an AJAX Looper control, space is kept for the rows.

• The maximum number of rows per page can be dynamically changed using the NbLinesPerPage property.
• If the number of rows in a new Looper control based on a data file is greater than the maximum number specified, a pager is automatically associated with the control. The pager makes it possible to view all the records in the Looper control.

Context menu

Novedad versión 2025
You can customize this context menu, for example by adding specific options, using the ContextMenu property.

Direct access to the properties of the controls (without using attributes)

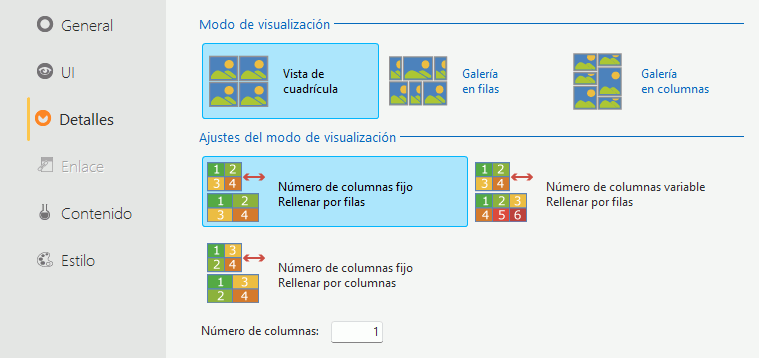

Display mode: Grid view

• In Zoning mode:

  • Fixed number of columns/Fill by rows.
    All you have to do is specify the number of columns to display. The looper will be populated horizontally until it reaches the specified number of columns and then starts in a new row. The number of columns does not change when the user changes the page width.
    This display mode is available for standard, AJAX and Browser loopers.
  • Variable number of columns/Fill by rows.
    The number of columns depends on the page width. The number of columns increases or decreases when the user changes the page width.
    You can define the minimum number of columns.
    This display mode is available for standard and Browser loopers.
  • Fixed number of columns/Fill by columns.
    Specify the number of columns to display (greater than 1). The looper will be populated vertically until it reaches the specified number of rows and then starts a new column. The number of columns does not change when the user changes the page width.
    This display mode is available for standard loopers.
• In Responsive Web Design mode:

  • Variable width of columns.
    All you have to do is specify the number of columns to display. The looper will be populated horizontally until it reaches the specified number of columns and then starts in a new row. The number of columns does not change when the user changes the page width.
    This display mode is available for standard, AJAX and Browser loopers.
  • Fixed width of columns.
    The number of columns depends on the page width. The number of columns increases or decreases when the user changes the page width.
    The minimum number of columns must be specified. The icon indicates that this value is specific to each slice. Therefore, this value must be modified for each slice in the page.

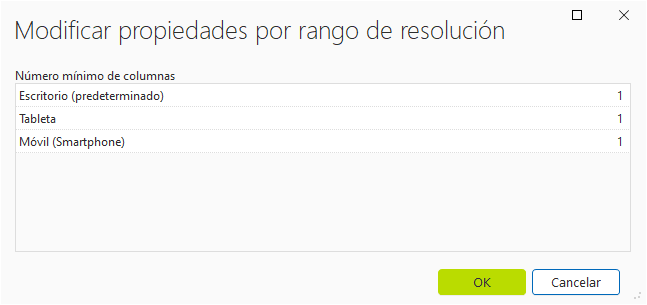

    Click the icon to directly define the values for each slice in the following window:


    This display mode is available for standard loopers.
  • Number of columns per slice. In a page in Responsive Web Design mode, the number of columns can change according to the slice. Each slice has a different width.
    This display mode is only available for standard loopers.
    This allows you to adapt the number of columns according to the slice width (i.e. according to the browser size).
    When this option is selected, an icon appears to the right of the specified number of columns: . This icon indicates that this value is specific to each slice. Therefore, this value must be modified for each slice in the page.
    Click the icon to directly define the values for each slice in the following window:


    This display mode is available for standard and Browser loopers.

Display mode: Online gallery

If the Looper control shows the data as a gallery in rows, you can define several options:

• Control de referencia para la altura Set the RepeatString field to be used as a reference for the width of the images displayed in the line. This control can be an Image or Thumbnail control. If the source image is smaller than the dimensions defined in the editor, the dimensions of the reference control will be applied to the image at runtime.
• Al hacer clic, abrir una popup de desplazamiento automático Dequeue: Automatically displays a popup allowing you to dequeue the various gallery items. This popup contains:
  • the elements in the row.
  • a "Close" button and the Next and Previous arrows. These elements can be set via the "Style" tab of the Looper control description window ("Left button", "Right button" and "Close button" elements).
• Animar durante la reorganización de las celdas al redimensionarlas: Enables an effect to be obtained when reorganizing rows in the event of browser resizing. The duration of this animation can be specified. This value can be modified using the AnimationDuration property.

Display mode: Column gallery

If the Looper control shows the data as a gallery in columns, you can define several options:

• Fixed number of columns/Variable width.
  The looper will be populated horizontally until it reaches the specified number of columns and then starts in a new row. The number of columns does not change when the user changes the page width.
  This display mode is available for standard loopers.
  The number of columns to display must be specified.
• Variable number of columns/Variable width.
  The number of columns depends on the page width. The number of columns increases or decreases when the user changes the page width.
  This display mode is available for standard loopers.
• Variable number of columns/Fixed width.
  The looper will be populated horizontally, and then vertically. The number of columns and the width of each row changes when the user changes the page width.
  This display mode is available for standard loopers. In Responsive Web Design mode, the icon indicates that this value is specific to each slice. Therefore, this value must be modified for each slice in the page. Click the icon to directly define the values for each slice in the following window:


• Height reference field Set the RepeatString field to be used as a reference for the height of images displayed in the line. This control can be an Image or Thumbnail control. If the source image is smaller than the dimensions defined in the editor, the dimensions of the reference control will be applied to the image at runtime.
• When clicked, opens an automation scroll popup Dequeue: automatically displays a popup allowing you to dequeue the various elements of the gallery. This popup contains:
  • the elements in the row.
  • a "Close" button and the Next and Previous arrows. These elements can be set via the "Style" tab of the Looper control description window ("Left button", "Right button" and "Close button" elements).
• Animate cell reorganization on resizing Animate cell rearrangement on resizing: This animates the rearrangement of rows when the browser is resized. The duration of this animation can be specified.

Infinite looper

Element "Frame/Background": Frame thickness

• will not be applied properly in Internet Explorer.
• will be applied properly in Firefox.

Left button, Right button and Close button
