Organizer report
Overview
The report editor gives you the ability to create "Organizer" reports.
In this case, the report includes an Organizer control only. This type of control is created when creating an Organizer report: it cannot be created independently of this report.
Example:

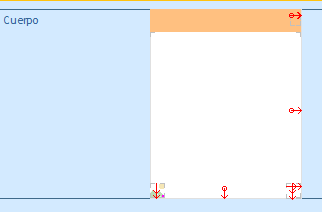

In the editor, this control includes two blocks:
  • The "Header" block, displaying the titles of the organizer columns.
  • The "Organizer" block, displaying the appointments in an Organizer control.
Versiones 21 y posteriores
Universal Windows 10 App The Organizer reports are now available.
Nueva funcionalidad versión 21
Universal Windows 10 App The Organizer reports are now available.
Universal Windows 10 App The Organizer reports are now available.
Creating an Organizer report

Creating the report

To create an "Organizer" report:
  1. Select "File .. New .. Report". The wizard for report creation starts. Click among the quick access buttons.
    • Click "Report" in the wheel that is displayed. The window for creating a new element is displayed: click "Report" then "Report".
    • The wizard for report creation starts.
  2. Select an "Organizer or Scheduler" report.
  3. In the rest of the wizard, specify:

Information specific to the Organizer creation

The information specific to the Organizer creation is as follows:
  • Initial display mode: The organizer can be displayed:
    • on a daily basis,
    • on a weekly basis,
    • on a monthly basis.
  • The granularity of gridlines. This granularity is used to define the size of the grid used to display the gridlines of Organizer control. This granularity is set to 30 minutes by default. This information must be modified according to the number of days to display.
    This characteristic can be modified by programming via ..GranularityGridlines.
Note: If the Organizer report is linked to a data source (query, data file), you must specify the items that will be taken into account for displaying the appointments. The following information must be specified:
  • the title of appointment.
  • the start and end dates of appointment.
Characteristics of Organizer report and Organizer control
You have the ability to modify the following characteristics of Organizer report:
  • The data source of Organizer report can be modified in the "Data" tab of description window of report ("Report description" from the popup menu of report).
  • The "General" tab of description window of Organizer control is used to specify:
    • the initial display mode: Day, week, month.
    • the number of days displayed.
    • the visible time period.
    • the first day of the week.
    • the granularity of gridlines.
    • Versiones 18 y posteriores

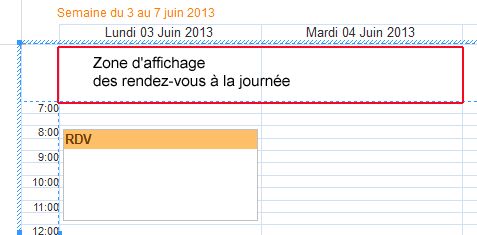

      the display of appointments for the entire day. If the option "Display the appointments for the whole day" is checked, the report takes into account the appointments for which the "Whole day" characteristic is supported (see Appointment variable for more details). In this case, an area used to display the daily appointments appears in the organizer:
      Note: Make sure that the area used to display the daily appointments has the proper dimensions in the report editor. It can be resized if necessary.
      Nueva funcionalidad versión 18
      the display of appointments for the entire day. If the option "Display the appointments for the whole day" is checked, the report takes into account the appointments for which the "Whole day" characteristic is supported (see Appointment variable for more details). In this case, an area used to display the daily appointments appears in the organizer:
      Note: Make sure that the area used to display the daily appointments has the proper dimensions in the report editor. It can be resized if necessary.
      the display of appointments for the entire day. If the option "Display the appointments for the whole day" is checked, the report takes into account the appointments for which the "Whole day" characteristic is supported (see Appointment variable for more details). In this case, an area used to display the daily appointments appears in the organizer:
      Note: Make sure that the area used to display the daily appointments has the proper dimensions in the report editor. It can be resized if necessary.
    • the display mask for the date and schedules.
    • Versiones 20 y posteriores
      the custom report to display the appointments.
      • If the selected option is "None", the default display is used.
      • If "Preset report" is selected, a preset report is automatically added to the project. This report is named "RPT_WinDevViewAPT" by default and it is automatically used to display the appointments.
        This report can be customized, renamed, ...
      • If the selected option corresponds to a project report, this report will be used to display the appointments.
        We advise you to customize the report proposed by default.
        The same report can be used to customize the appointments in a Scheduler or Organizer report.
      Nueva funcionalidad versión 20
      the custom report to display the appointments.
      • If the selected option is "None", the default display is used.
      • If "Preset report" is selected, a preset report is automatically added to the project. This report is named "RPT_WinDevViewAPT" by default and it is automatically used to display the appointments.
        This report can be customized, renamed, ...
      • If the selected option corresponds to a project report, this report will be used to display the appointments.
        We advise you to customize the report proposed by default.
        The same report can be used to customize the appointments in a Scheduler or Organizer report.
      the custom report to display the appointments.
      • If the selected option is "None", the default display is used.
      • If "Preset report" is selected, a preset report is automatically added to the project. This report is named "RPT_WinDevViewAPT" by default and it is automatically used to display the appointments.
        This report can be customized, renamed, ...
      • If the selected option corresponds to a project report, this report will be used to display the appointments.
        We advise you to customize the report proposed by default.
        The same report can be used to customize the appointments in a Scheduler or Organizer report.
  • If the Organizer control is linked to a data source (data file, query, ...), the "Content" tab found in the description window of the control is used to linked the appointment data with the data found in the data source.
  • The "Style" tab found in the description window of Organizer control is used to specify the style of appointments displayed in the Organizer control.
Handling an organizer in a report by programming

WLanguage functions

Several WLanguage functions are available in the report editor for handling the Organizer controls. These functions are as follows:
Versiones 15 y posteriores
OrganizerAddAppointment
Nueva funcionalidad versión 15
OrganizerAddAppointment
OrganizerAddAppointment
Adds a new appointment into an Organizer control.
Versiones 17 y posteriores
OrganizadorFondoColor
Nueva funcionalidad versión 17
OrganizadorFondoColor
OrganizadorFondoColor
Define un color de fondo para un intervalo de tiempo en una control Agenda.
Versiones 16 y posteriores
OrganizerChangeMode
Nueva funcionalidad versión 16
OrganizerChangeMode
OrganizerChangeMode
Modifica el rango de tiempo mostrado por un (Día/Semana/Mescontrol Agenda).
Versiones 15 y posteriores
OrganizerChangeZoom
Nueva funcionalidad versión 15
OrganizerChangeZoom
OrganizerChangeZoom
Modifica el rango de tiempo mostrado por un (Día/Semana/Mescontrol Agenda). Esta función se mantiene para la compatibilidad con versiones anteriores.
Versiones 15 y posteriores
OrganizerDeleteAll
Nueva funcionalidad versión 15
OrganizerDeleteAll
OrganizerDeleteAll
Deletes all appointments from an Organizer control.
Versiones 15 y posteriores
OrganizerDeleteAppointment
Nueva funcionalidad versión 15
OrganizerDeleteAppointment
OrganizerDeleteAppointment
Borra una cita de un control Agenda.
Versiones 15 y posteriores
OrganizerListAppointment
Nueva funcionalidad versión 15
OrganizerListAppointment
OrganizerListAppointment
Devoluciones:
Versiones 17 y posteriores
OrganizerMode
Nueva funcionalidad versión 17
OrganizerMode
OrganizerMode
Returns the display mode of an Organizer control: day, week, month, ...
Versiones 15 y posteriores
OrganizerPosition
Nueva funcionalidad versión 15
OrganizerPosition
OrganizerPosition
Muestra un control Agenda a partir de una fecha especificada o devuelve la fecha del primer día (o la fecha del último día) que aparece en un control Agenda.
Versiones 15 y posteriores
OrganizerTimeDisplayed
Nueva funcionalidad versión 15
OrganizerTimeDisplayed
OrganizerTimeDisplayed
Define el intervalo de tiempo que se muestra control Agenda en el modo Día o en el modo Semana.
Versiones 15 y posteriores
OrganizerZoom
Nueva funcionalidad versión 15
OrganizerZoom
OrganizerZoom
Devuelve el intervalo de tiempo que se muestra en la pantallacontrol Agenda.

WLanguage properties

Several WLanguage properties are available in the report editor for handling the Organizer controls. These properties are as follows:
Versión mínima requerida
  • Versión 17
