At the end of the wizard, the window is created under the editor with the specified characteristics. In addition to the window, you can view the following elements in the editor:

• the system bar,
• the areas that correspond to the portrait or landscape mode (represented by dashes).

Window orientation

Several options are available:

These options can be modified in the editor, in the "Details" tab of the description window ("Orientation").

You also have the ability to specify whether automatic scrollbars must be displayed. The scrollbars will be automatically displayed if the size of the window is greater than the resolution of the screen on the device used.

Window content: single or double

You can create:

• a window simple data are displayed in the entire window.
  In this case, the subsequent steps of the wizard will allow you to define the contents of the window.
• an double window: the window is split into two parts. This type of interface allows you to implement a menu or a choice of options in the left section while the details are displayed on the right.
  In this case, the subsequent steps of the wizard allow you to define:
  • the content of the left section.
  • the content of the right section. This content can be:
    • static (defined in the editor): the wizard then proposes to define the content of the zone.
    • an internal window. In this case, an Internal Window control is automatically created in the window.

When should the content be defined?

• simple window.
• left section of a double window.
• right section of a double window with static content.

Window content

You have the ability to create a window:

• with an Action Bar. This field displays several items of information: the application icon, the window title, certain menu options, your window's drop-down menu, etc., ...
  To add an "Action Bar" to a window: under the "Ventana" pane, in the "Barras y menús" group, click on "Otras barras" and select "Action Bar".
• with a looper or a multiline zone. This type of window can be used, for example, to set one or more parameters, select an option, etc.
• with a Tab bar. In most cases, a "Tab bar" is used to access the different windows of the application.
  To add a theme bar to a window: under the "Ventana" pane, in the "Barras y menús" group, pull down "Otras barras" and select "Theme bar (Tab Bar iOS)".
• with a toolbar. In most cases, the toolbar is used to perform actions on the current window.
  To add a toolbar to a window: under the "Ventana" pane, in the "Barras y menús" group, pull down "Otras barras" and select "Toolbar (iOS ToolBar)".

• A toolbar proposes actions on the current view.
• A tab bar corresponds to tabs.

Configuring the looper or the multiline zone

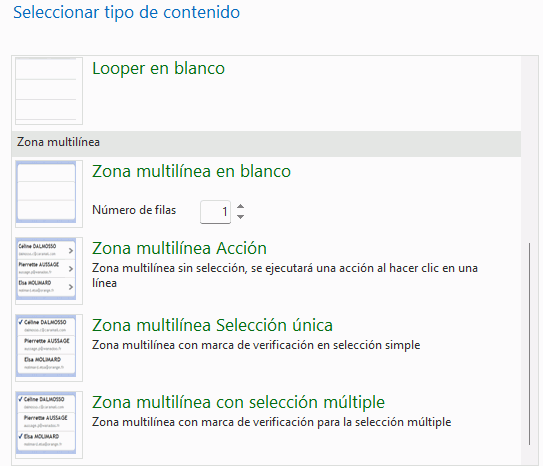

• Several types of preset loopers or multiline zones are available:


• The following step is used to configure the elements displayed in the looper or in the multiline zone.

• For a looper, you have the ability to choose how the looper will be filled (programming, file link, variable link).

• RepeatString initialization code: this event is used, for example, to fill the RepeatString zone..
• Line selection code: this event manages the actions performed when the user clicks on the standard arrow..
• Image click code IMG_Disclosure: this event is used to manage clicks on the custom chip..

• Looper control.
• Multiline Zone control.

Tab bar or toolbar

• Color
• Style
• Buttons displayed
